Description

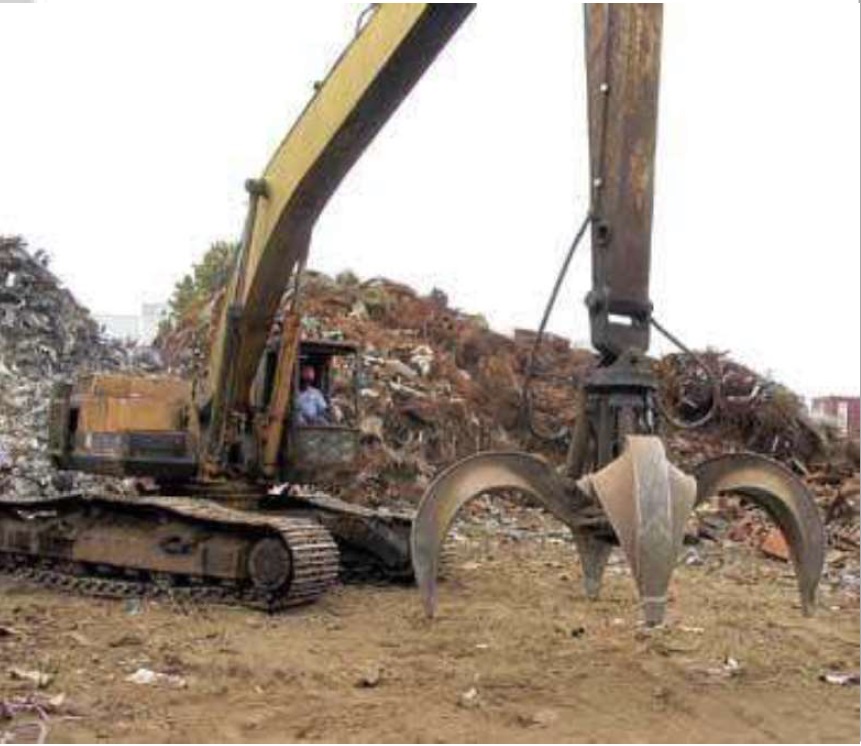

Scrap Metal Grapple
Application:

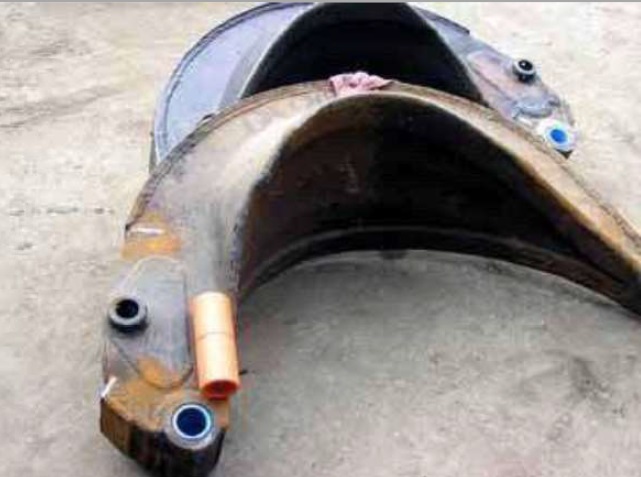

Grapple finger, collect and handle scrap metal
Installation Date:
December 2003
Notes:
- High shock and impact load.
- Pressure range 4000 to 5000 psi (27.5 to 34.4. MPa).
- Previous bearing was GREASED NYLON from OEM supplier requiring changes every 2-3 weeks.

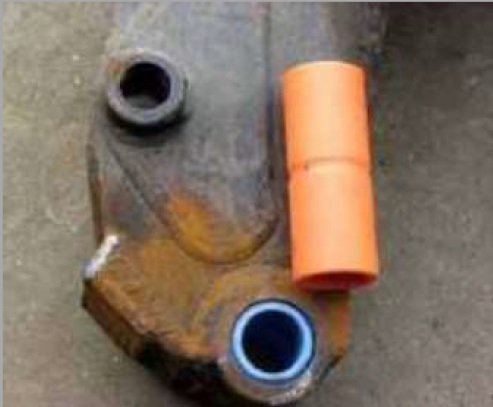

- ThorPlas-Blue bearings OUTLIVED the grapple!
Lower Cycle Costs – savings on cost of grease, labour to grease and replace previous bearings.

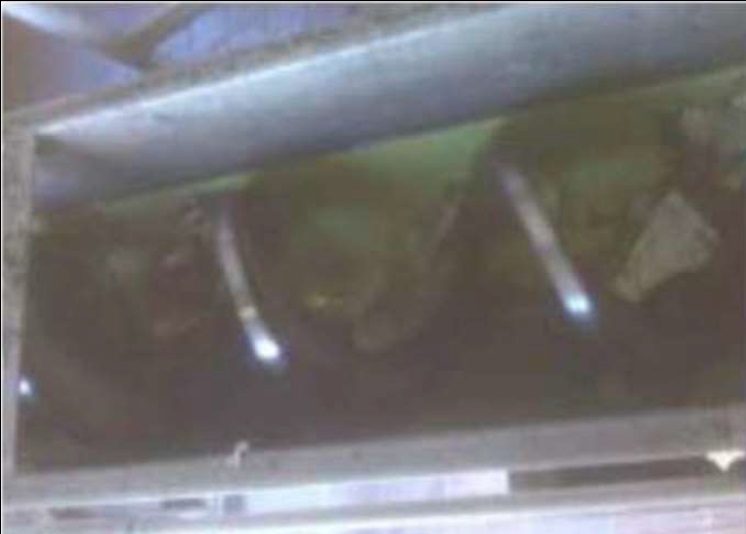

Screw Conveyor
End User:
City of Detroit WWT Plant
Application:
Screw Conveyor bearings
Note:
Greased bronze hanger bearings were lasting only 6 months
ThorPlas-Blue has been operating for 3 years

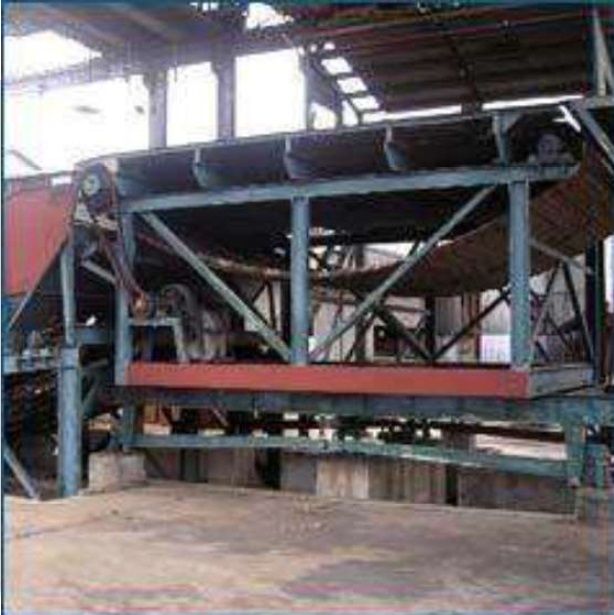

Sugar Cane
Application:

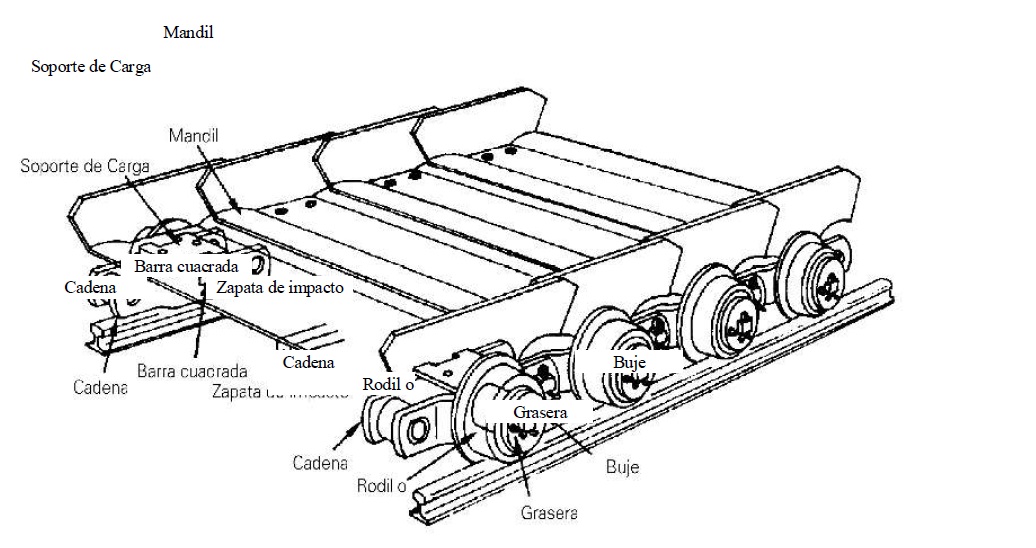

Sugar Cane Conveyer System-Feeding Table Wheels
Notes:
- Wheels in the feeding tables has bronze bushings initially
- Dirt in system had caused maximum of 15 days
- Thordon SXL bearings were installed and achieved a service life of greater than 1 year
Modifications to the sugar cane cleaning process were also introduced
